Commode won’t flush
Drains won’t drain
Nasty ponding in the yard
But wait a minute, you’ve pumped your septic tank more than once but it’s still not working and now the pump truck guy says your drainfield is failing and needs to be replaced.
Don’t do it! Don’t spend thousands and tear up your landscaped yard replacing your drainfield.
Click to enlarge!
Call us and we will show you how to completely restore your septic system without excavation and spending thousands.
30+ Years of Experience
Apriance LLC DBA RioVation®
- Install the Filtered Pump Vault into your septic tank through the single access opening and immediately control the level in your septic tank while forcing the effluent into the drainfield.

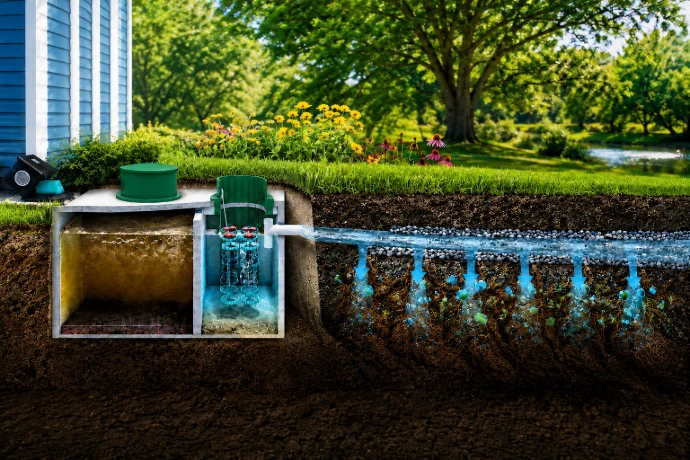

- Now your septic tank discharges an odorless, high dissolved oxygen effluent to the drainfield for drainfield rejuvenation.
- Never pump your septic tank again to flush your toilet.
Forced Rejuvenation® Technology
True Aerobic® Septic Tank Conversion Kits
RioVation offers two technologies to convert your Septic Tank into a True Aerobic® Treatment Unit (ATU). There’s the Suspended Growth (SG) Conversion Kit in the upper picture and the Fixed Film Media (FFM) BioMaze™ in the lower picture.
- Both are installed through a single access opening in the lid of your septic tank.
- The septic tank is now converted to a True Aerobic® Treatment Unit (ATU). It will produce a high quality effluent, odorless, high in dissolved oxygen and will not only rejuvenate the failed drain field but will protect it from future plugging.
True Aerobic® (ATU) Conversion Kit – Suspended Growth (SG)
The True Aerobic® (ATU) Conversion Kit (SG) consists of a floating, collapsible plastic clarifier, floats, anchored porous ceramic diffusers with airline hoses and an outlet T assembly. To install – the clarifier is collapsed and inserted into the septic tank through a small access opening in the lid of the septic tank. Once inside, the clarifier is uncollapsed and resumes its original shape. The 4 inch hole in the clarifier is connected to the septic tank outlet pipe. Now the clarifier floats in the proper position in the septic tank. The diffusers are lowered through the access opening and positioned on the bottom of the septic tank between the clarifier and the septic tank outer wall. The outlet T assembly is connected to the outlet pipe in the septic tank.
The septic tank is now converted to a True Aerobic® Treatment unit (ATU). It is a full blown extended aeration, activated sludge, suspended growth, aerobic treatment unit (ATU) just like the cities in the United States have been utilizing for over 100 years, just a miniature version. It will produce a high quality, odorless effluent, high in dissolved oxygen and will not only rejuvenate the failed drainfield but will protect it from future plugging.
True Aerobic® (ATU) Conversion Kit – Fixed Film Media (FFM) BioMaze™

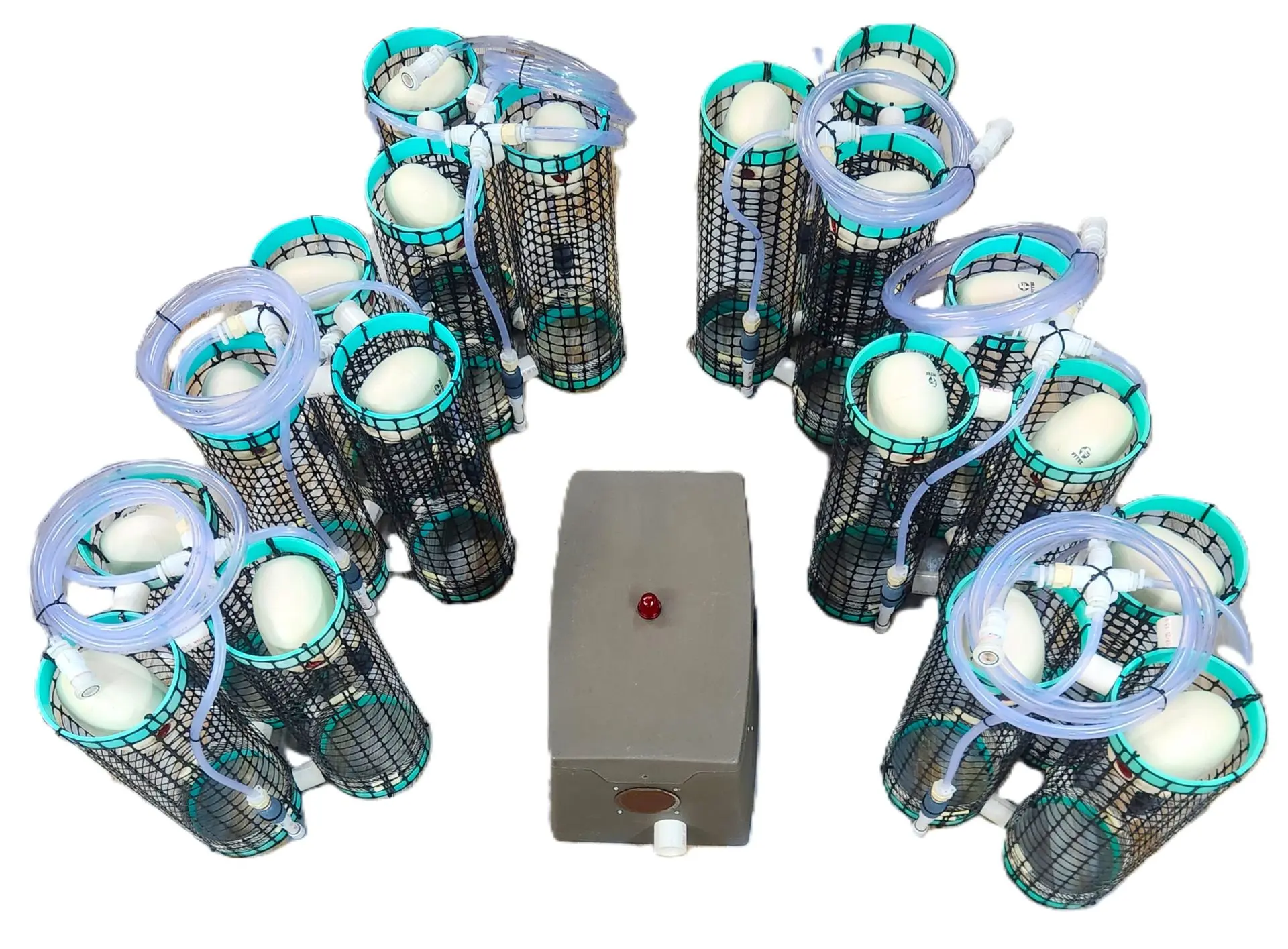

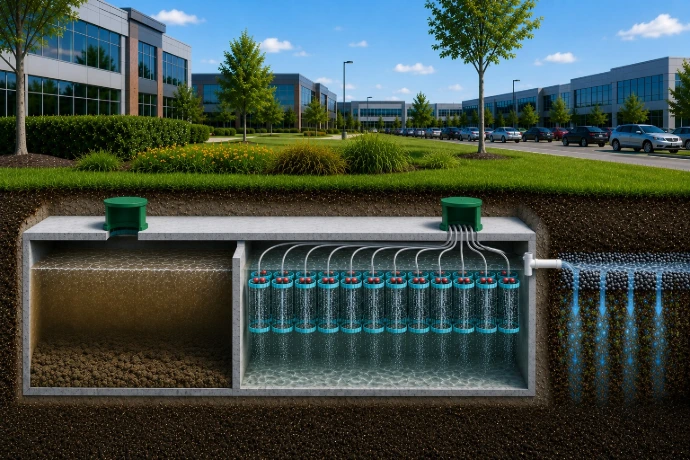

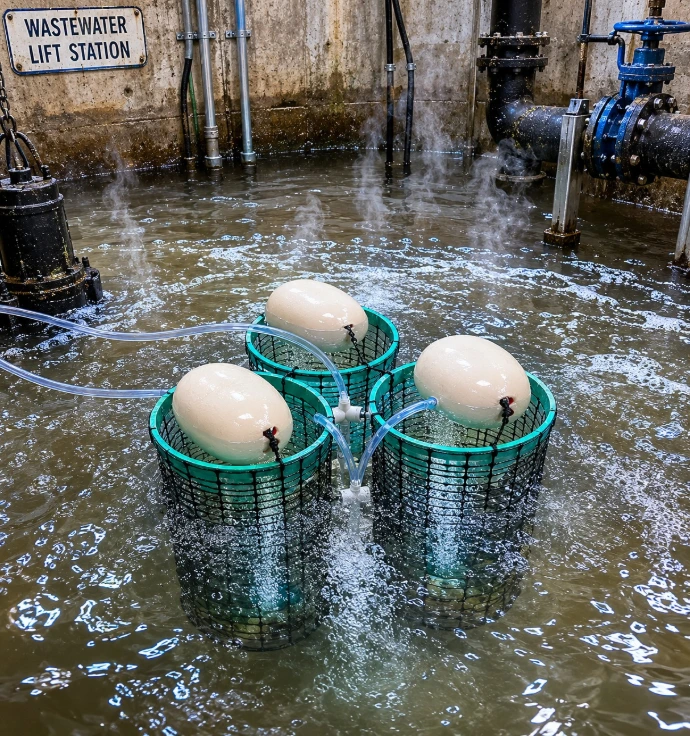

The True Aerobic® ATU Conversion Kit FFM BioMaze™ is easy to install and consists of self-positioning Fixed Film Media pods. Just lower the FFM pods into the septic tank through the access opening of the septic tank using the attached nylon ropes. The FFM pods will position themselves at the proper level. The Master Pod is equipped with the porous ceramic fine air diffuser and air hose and is installed last. Tie the ropes to the side of the riser to make retrieval of the pods easy. The Master Pod should be tied in such a way to keep it near the center of the compartment or tank.
Filtered Pump Vault
The Filtered Pump Vault consists of a pump, check valve, level float switch, screen assembly, and vault all assembled together as one unit. It is suspended into the clarifier of the converted True Aerobic® Treatment unit (ATU) and is supported by a bracket that is attached to the riser.
The Filtered Pump Vault is an important Forced Rejuvenation® Technology. In so many failing drainfield situations the drainfield is flooded causing wastewater effluent to backup into the septic tank. This creates a high level condition in the septic tank which prevents drains in the home from working properly (i.e. commodes won’t flush, showers won’t drain, gurgling sounds etc.) This is a serious problem that can limit the use of the home.
This situation creates another problem.
If the ATU effluent will not flow into the failing drainfield, rejuvenation will not occur and the problem will persist.
In this situation the Filtered Pump Vault must be installed into the converted True Aerobic® Treatment unit (ATU). Once installed the level in the ATU will be maintained at the proper operating level and all the drains in the home will resume proper operation.
You will never have to pump your septic tank again to flush your commodes.
The ATU effluent will be discharged by the filtered pump vault under pressure or forced into the failing drainfield, thus accomplishing Force Rejuvenation® of the failing drain field. Just sit back, relax and watch your drainfield recover with time.
